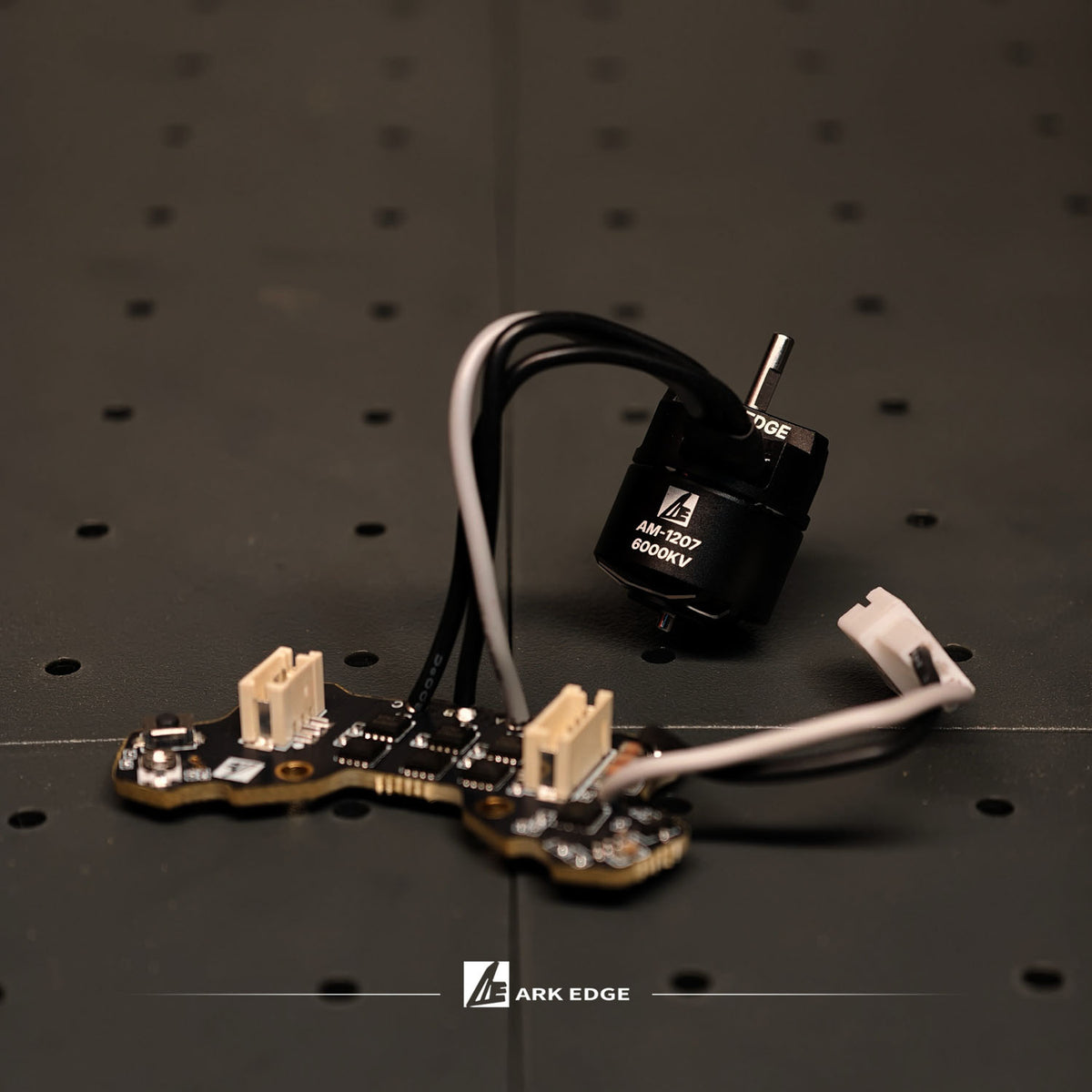

AGP-3 — Integrated ESC + Gyro for 1/24 RWD Drifting
The ArkEdge AGP-3 ECU integrates brushless ESC and gyro control into one compact system, designed to simplify electronics setup for 1/24 RWD RC drift cars.
Unlike conventional setups that use separate ESC and gyro units, the AGP-3 coordinates motor output and steering assistance through three driving modes: TC Assist, One-Pedal and Natural Mode.
Paired with a pre-soldered 6000KV FreelyRC outrunner motor, the AGP-3 offers a compact electronics solution for beginners and drivers looking for an integrated setup.
Key Features
- ESC + Gyro 2-in-1: Integrated power and steering assistance control.
- Three Driving Modes: TC Assist, One-Pedal and Natural.
- 6000KV Outrunner Motor: Pre-soldered and included.
- 2S LiPo Support: Compatible with 6.6–8.7V input.
- Compact Design: Approximately 49 × 23 × 9 mm and 4.4 g.
- EVO-R Compatibility: Supports the AE24X EVO-R's native mounting holes.
User Manual
ENGLISH VERSION ↗ / 中文版本 ↗
Frequently Asked Questions
1. What is the AGP-3 ECU?
The AGP-3 ECU is a 1/24 RWD drift ECU that integrates ESC and gyro control in one compact unit.
It is designed to make small-scale drifting easier to start, with power delivery and chassis attitude control working together.
2. Who is the AGP-3 ECU designed for?
The AGP-3 ECU is designed for 1/24 RWD drift drivers, especially beginners who want a simpler way to enter micro RC drifting.
Its integrated design helps reduce setup difficulty and lowers the learning cost for new drivers.
3. Does the AGP-3 combine ESC and gyro control?
Yes.
The AGP-3 integrates ESC + gyro coordinated control.
This allows motor output and gyro intervention to work together for a more stable drift attitude.
4. What control modes does the AGP-3 include?
The AGP-3 includes three control modes:
TC assist mode coordinates power delivery with vehicle dynamics, one-pedal mode supports energy recovery, and natural mode emphasizes driving inertia.
5. Is the motor included?
Yes.

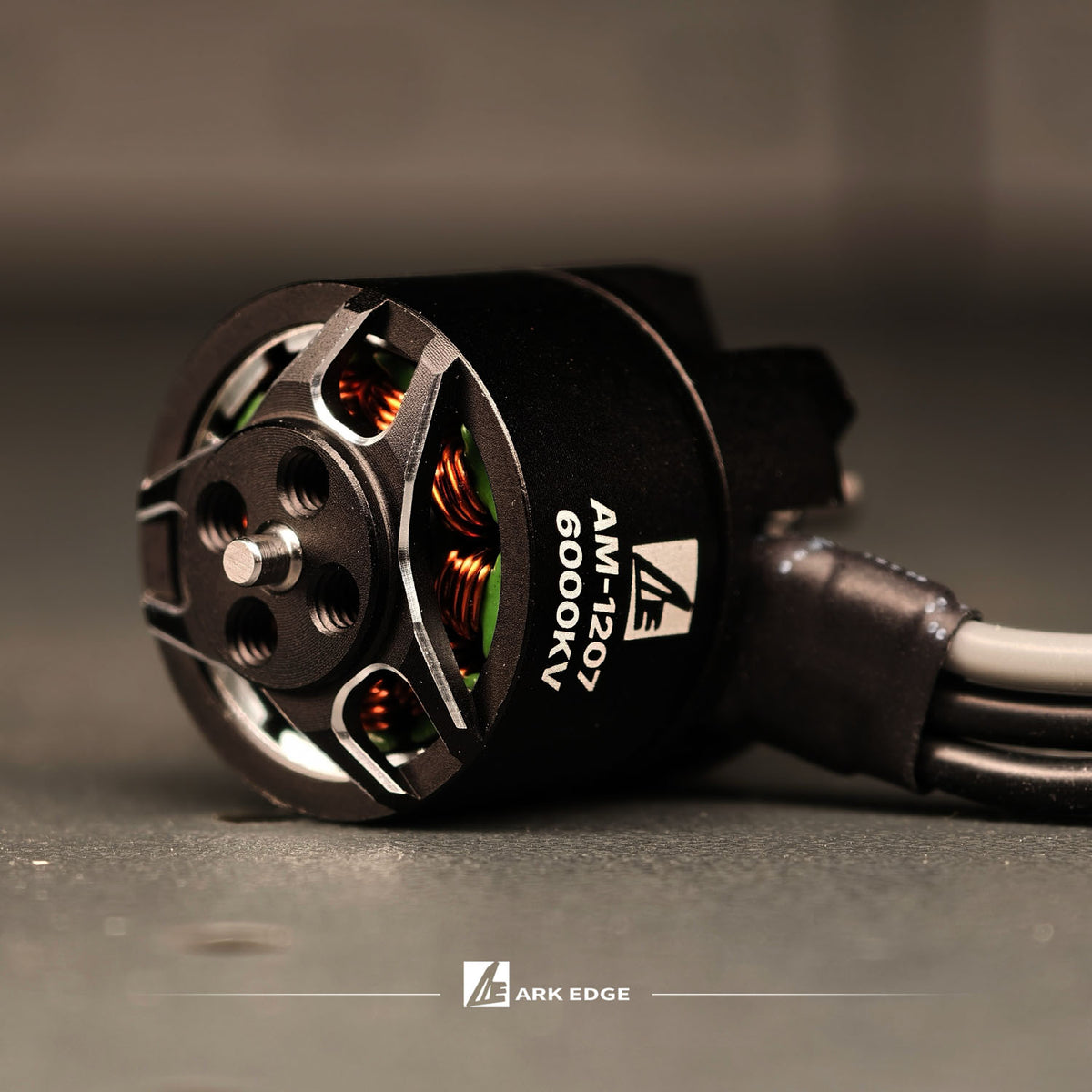

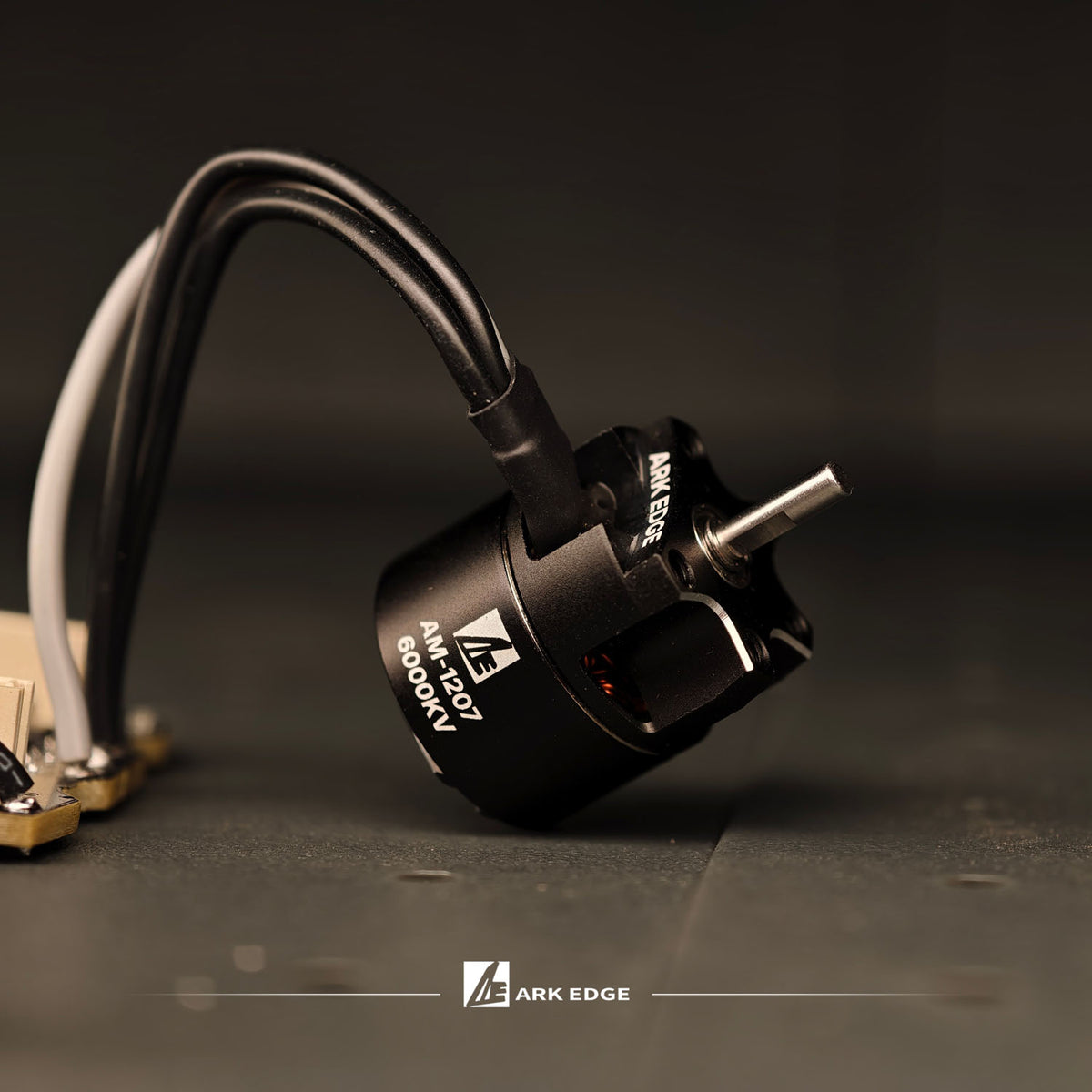

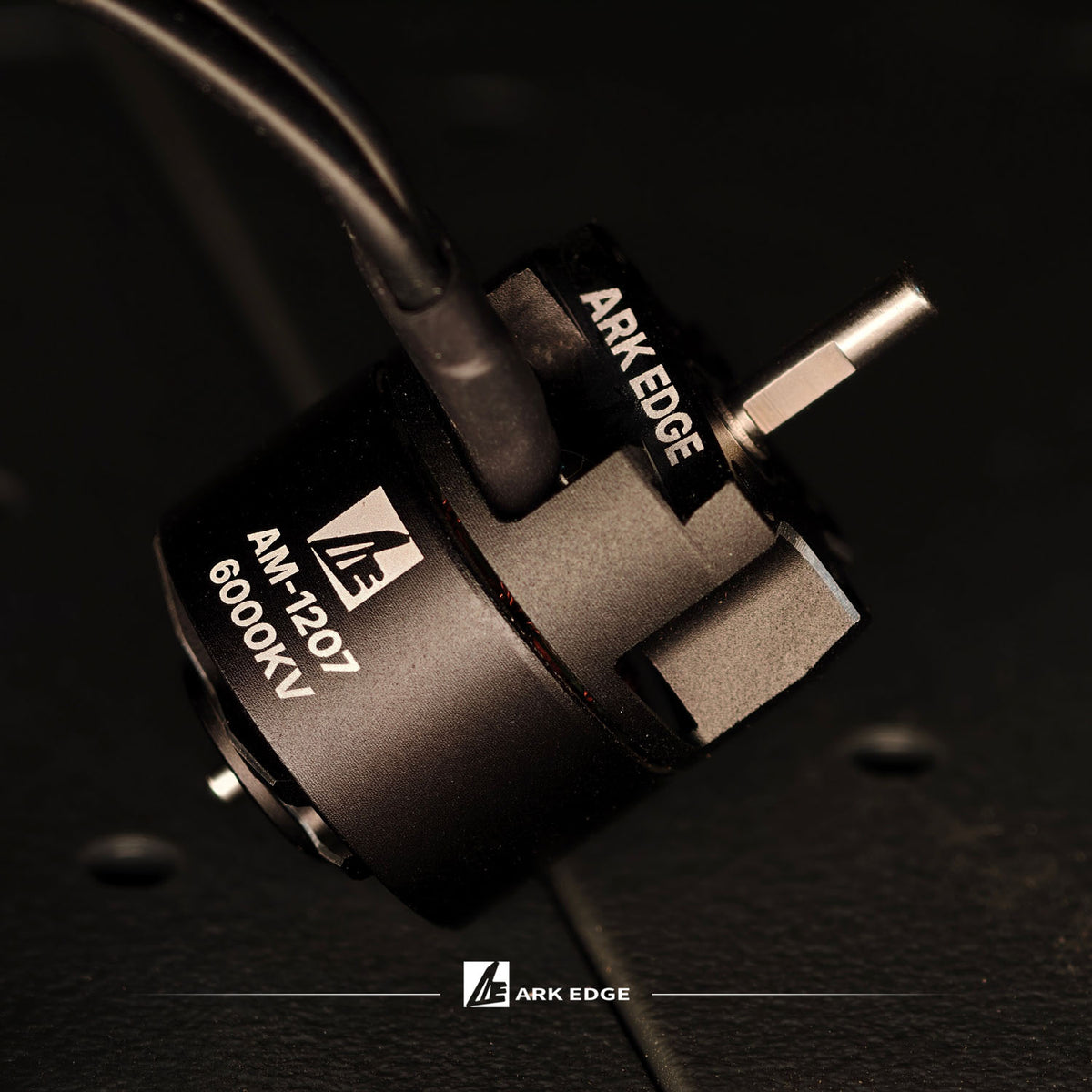

The package includes a pre-soldered 6000KV FreelyRC outrunner motor.
6. Does the AGP-3 require complicated soldering or setup?
No.
The product materials state that no complicated soldering or setup is required, and the included motor is pre-soldered.
7. What battery does the AGP-3 support?
The AGP-3 supports 2S LiPo batteries, including HV and LV packs.
The specified input voltage range is 6.6V-8.7V.
8. What connectors does the AGP-3 use?
9. What signal type does the AGP-3 use?
10. Does the gyro support EPA setup?
Yes.
The AGP-3 gyro supports EPA setup, and the package includes a gyro gain adjustment screwdriver.
11. Is the AGP-3 compatible with the AE24X EVO-R?
Yes.
The AGP-3 supports the native mounting holes on the AE24X EVO-R, making it a straightforward electronics option for that platform.
12. What are the basic specifications of the AGP-3 ECU?
13. What is included with the AGP-3 ECU?
The package includes:
- AGP-3 ECU ESC + Gyro 2-in-1 x1
- 6000KV FreelyRC outrunner motor, pre-soldered x1
- Dedicated AGP-3 ECU cable x1
- Gyro gain adjustment screwdriver x1
