- Description
1. AE24X Chassis Assembly Instructions:
This is a kit version. You MUST assemble the chassis yourself. It does not include electronics, car body, or wheels.
2. Required Tools:
- Hexagonal screwdriver: 0.7mm (for 1.6mm wheels)
- Phillips screwdriver: PH0 screwdriver bit
- Socket (for hub installation): 4.0mm, 0.9mm, 1.3mm, 1.5mm

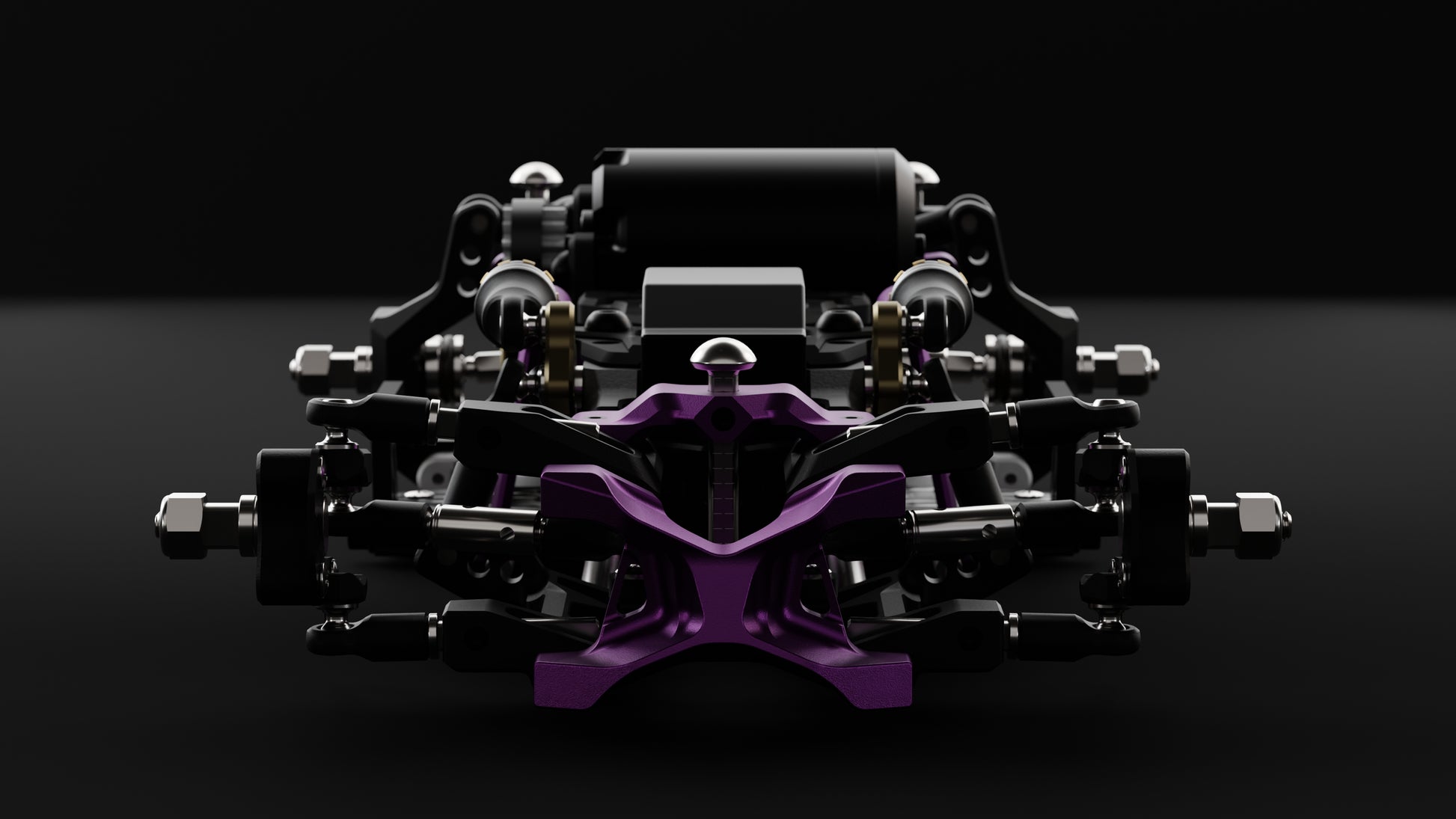

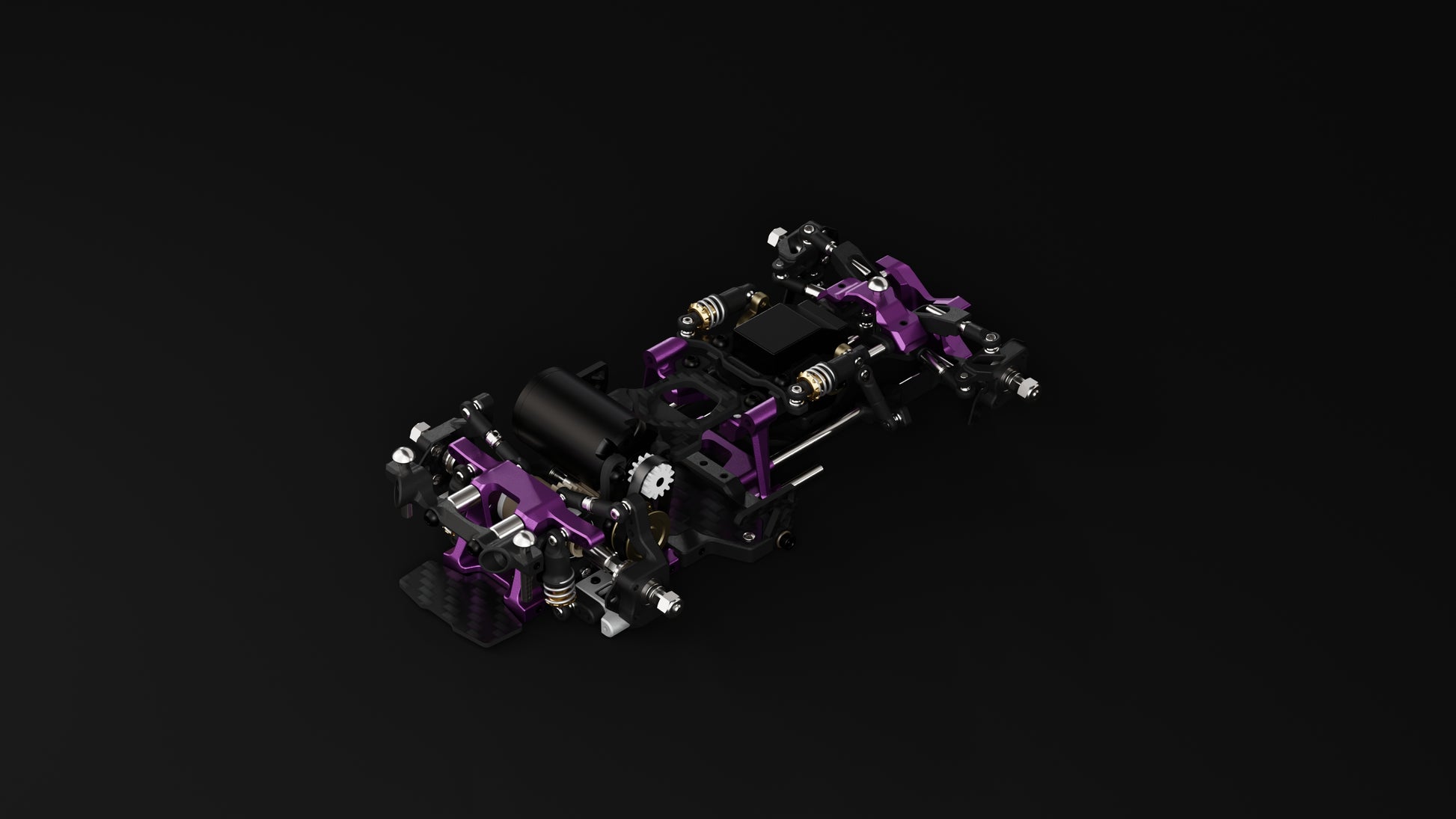

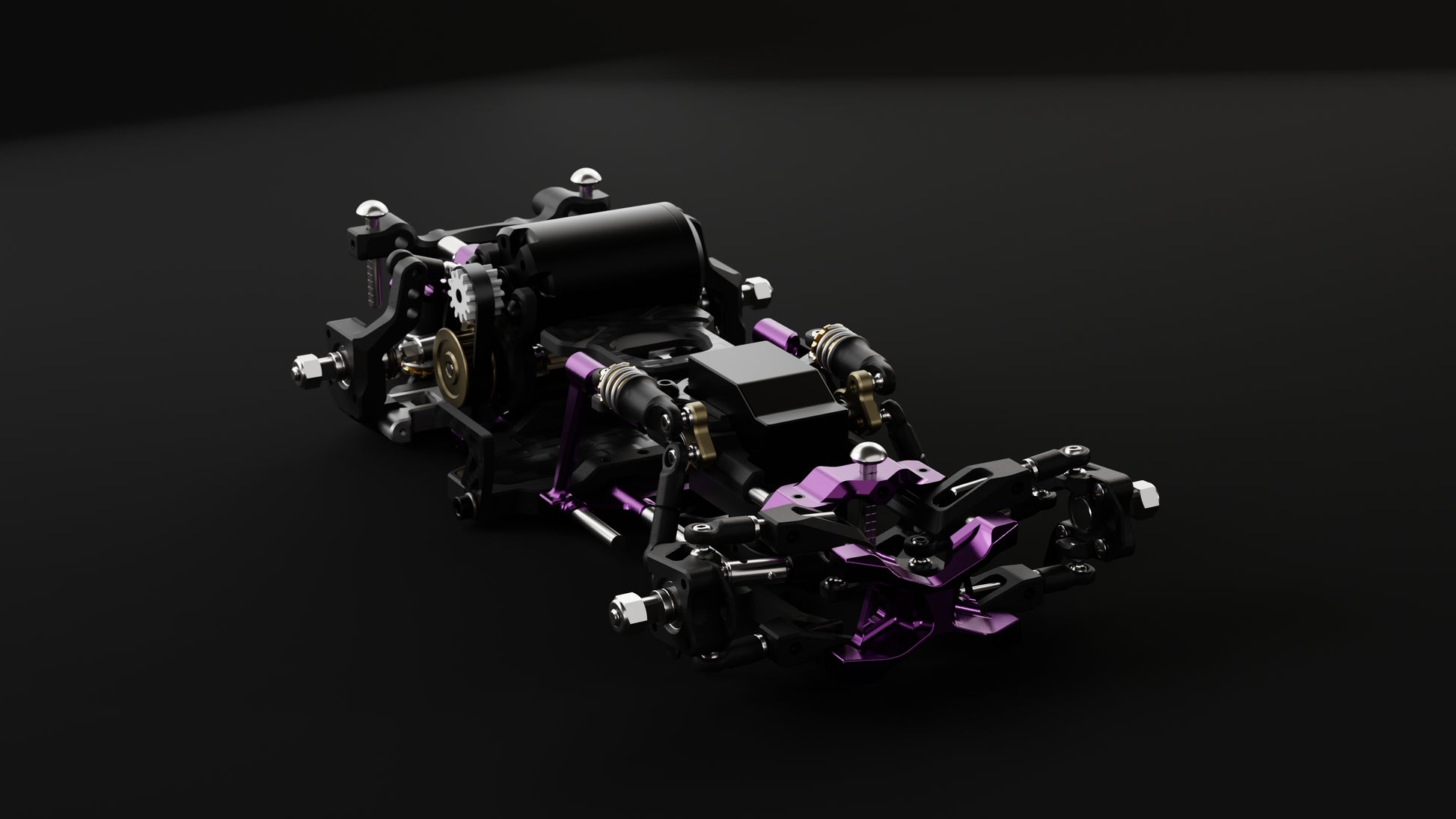

Ark Edge's 2025 new 1/24 scale RC drift chassis - AE24X.
- Lightweight and High-Strength Tubular Chassis
- Precisely Tuned Direct-Drive Front Steering System
-
Quick Adjustment System - CASTER, ACKERMANN, wheelbase, track width, and CAMBER functions
-
Flexible and Adjustable Battery Mount
-
Wide and Quick Wheelbase Adjustment - 94mm to 116mm
- Unique A-arm Structure
-
Wear-Resistant, Maintenance-Free PEEK Gear Drive
- Belt + Gear Hybrid Drive System
- Flat Chassis Design
- Screw Consistency Design

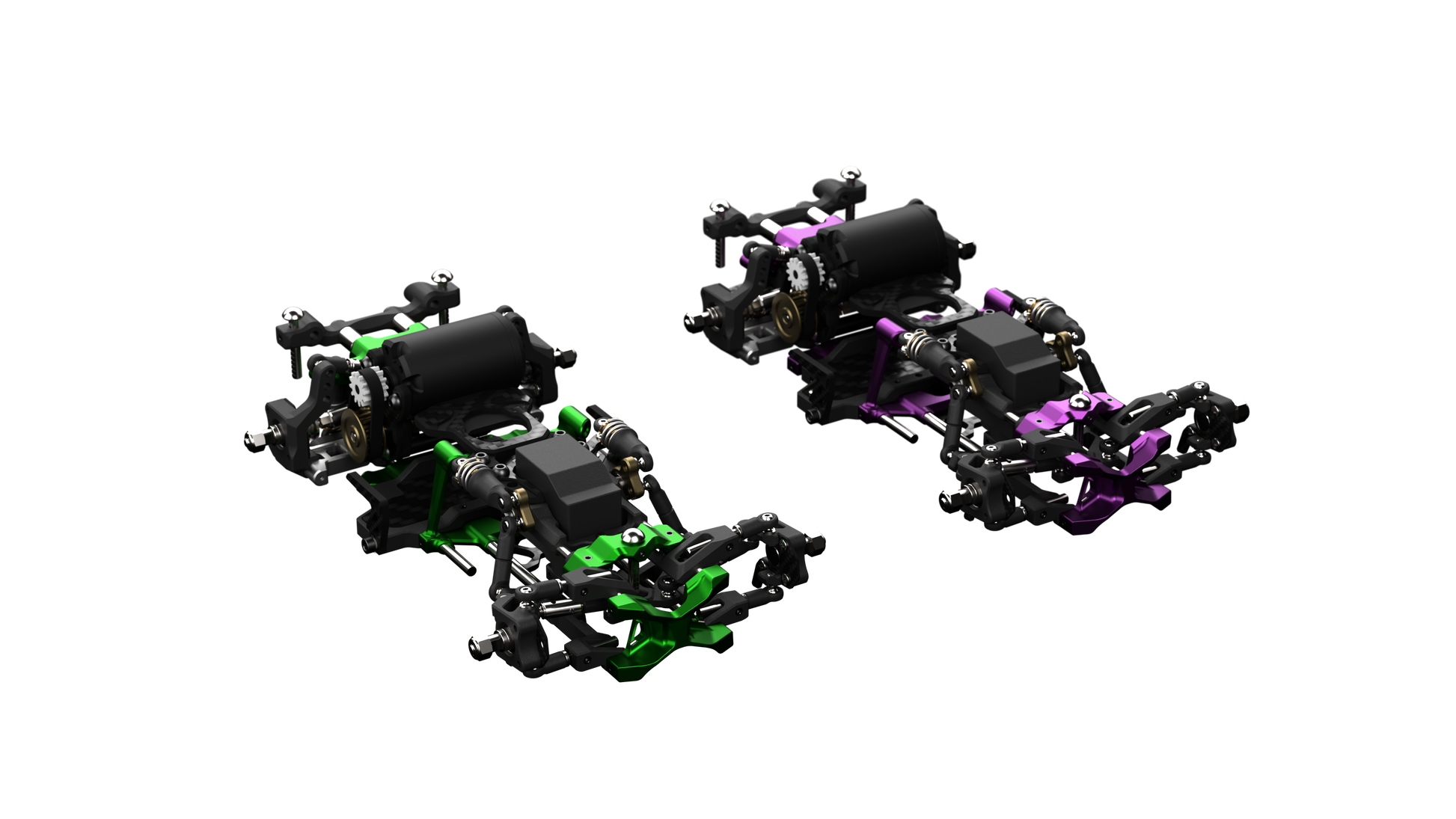

Two colors, purple and green are available this time. You can choose what you like.
AE24X kit includes:
1 - AE24X
1 - AE24X
1 - AE24X user manual
Chassis Specs:
Weight: 66g
Width: 74mm
Length: 131mm
Wheelbase Range: 94mm ~ 116mm
Notice: No electronics include.
Installation Instructions: https://drive.google.com/file/d/1a0dxutfXdltLrqJQlzQThNY2ebHcG11N/view?usp=sharing
