If you're getting into RWD RC drifting, one component you'll see almost immediately is the gyro.
But what does it actually do?
A drift gyro detects the rotational movement of the chassis and automatically sends steering corrections to the servo. In a RWD drift car, this helps the front wheels counter-steer quickly enough to stabilize the car while the rear wheels are sliding.
The driver still controls the car.
The gyro does not replace steering input—it assists the steering system so the chassis can react faster and maintain a controlled drift.
This is especially important in small-scale platforms such as 1/24 and 1/28 RC drift cars, where the car reacts very quickly to changes in grip, throttle and weight transfer.
What Does a Gyro Do in an RC Drift Car?
A gyro monitors the rotation of the chassis.
When the rear of the car begins to rotate during a drift, the gyro detects that movement and sends a correction signal to the steering servo.
The servo then turns the front wheels in the opposite direction of the slide.
This movement is called counter-steering.

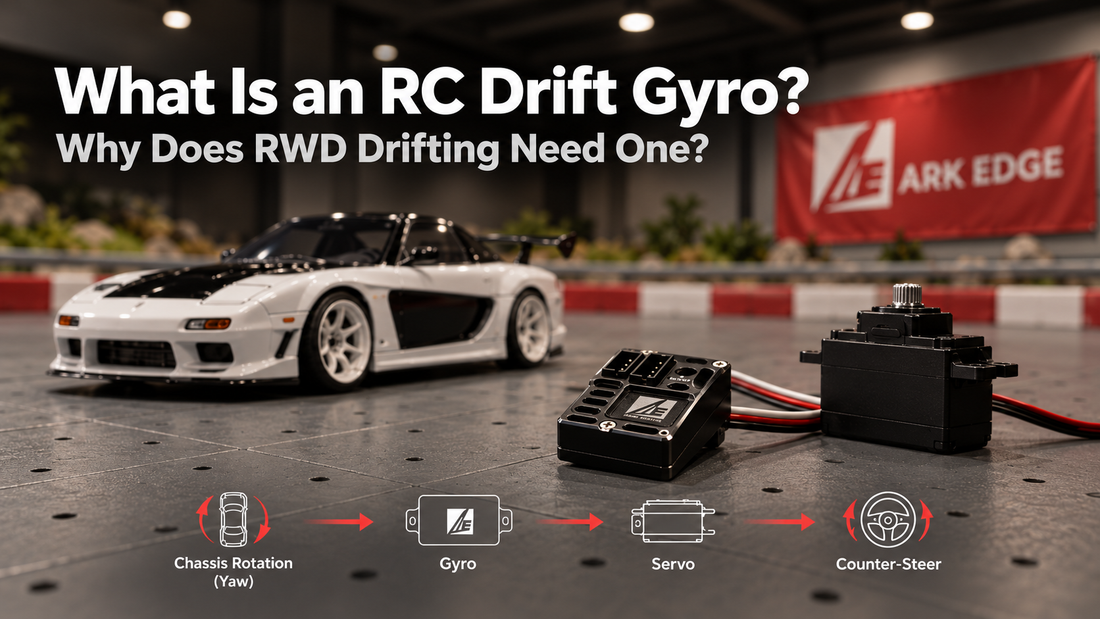

In simple terms:
Chassis rotates
↓
Gyro detects the rotation
↓
Gyro sends correction to the servo
↓
Front wheels counter-steer
↓
The chassis becomes easier to stabilize
The entire process happens extremely quickly.
Without this assistance, the driver would need to react to every small change in chassis rotation using steering input alone.
Why Do RWD RC Drift Cars Need a Gyro?
In a RWD drift car, only the rear wheels are driven.
The rear tires create the forward force and controlled wheelspin, while the front wheels guide the direction of the chassis.
During a drift, the rear of the car moves outward.
At the same time, the front wheels need to counter-steer to prevent the car from spinning.
At full scale, a driver physically turns the steering wheel to control this movement.
In RC drifting, the small size of the chassis and the speed of its reactions make this much harder to reproduce manually.
A gyro helps bridge that gap.
It allows the steering system to react to chassis rotation faster than the driver could through visual input and transmitter control alone.
That is why a gyro has become a standard component in modern hobby-grade RWD RC drifting.
Does the Gyro Drive the Car for You?
No.
This is one of the most common misunderstandings about RC drift gyros.
The gyro only assists the steering system.
You still control:
- Throttle
- Direction
- Corner entry
- Drift angle
- Transitions
- Line
- Speed
The gyro reacts to chassis rotation, but it does not know where you want the car to go.
Think of it as a steering assistant rather than an autopilot.
A well-set gyro helps make the chassis more predictable.
A poorly set gyro can actually make the car harder to drive.
What Is Gyro Gain?
Gyro gain controls how strongly the gyro reacts to chassis rotation.
This is one of the most important gyro settings.
With lower gain, the gyro provides less steering correction.
With higher gain, it provides stronger and faster correction.
But more gain is not always better.
If gain is too low, the car may feel unstable and spin easily.
If gain is too high, the steering may begin to oscillate rapidly from side to side.
This is often called gyro wobble or hunting.
The goal is to find a gain level that gives enough assistance to stabilize the chassis without making the steering overly aggressive.
What Happens When Gyro Gain Is Too Low?
When gyro gain is too low, you may notice:
- The rear of the car rotates too quickly
- The car spins easily
- Counter-steering feels too slow
- The chassis feels unstable during transitions
- You need excessive manual steering correction
For beginners, slightly higher gyro assistance can often make the car easier to control.
As driving skill improves, some drivers reduce the gain to achieve a more natural steering feel.
What Happens When Gyro Gain Is Too High?
When gyro gain is too high, you may notice:
- Rapid steering oscillation
- Front wheels shaking left and right
- Unstable straight-line behavior
- Over-correction during transitions
- Delayed or unnatural steering feel
If the front wheels begin repeatedly moving from side to side while the car is driving straight, excessive gyro gain is one of the first settings to check.
Reducing the gain slightly will usually improve stability.
How Does the Gyro Work With the Servo?
The gyro sits between the receiver and the steering servo.
A simplified signal path looks like this:
Transmitter
↓
Receiver
↓
Gyro
↓
Servo
↓
Front wheels
Your steering command goes into the gyro.
The gyro then combines your steering input with its own correction signal before sending the final command to the servo.
This is why gyro performance and servo performance are closely related.
A high-performance gyro cannot fully compensate for a servo that is extremely slow or inconsistent.
The two components work together as one steering system.
Why Is Servo Speed Important for RC Drifting?
During a drift, the steering system may need to move from one side to the other very quickly.
This happens especially during transitions.
If the servo reacts too slowly, the chassis may rotate faster than the steering can correct.
That can result in:
- Spins
- Delayed transitions
- Inconsistent steering
- Reduced control at larger drift angles
A fast, precise servo allows the gyro's correction signals to reach the wheels more effectively.
This is one reason gyro and servo selection should be considered together rather than as completely separate components.
What Is Gyro Sensitivity?
The terms gyro gain and gyro sensitivity are sometimes used interchangeably.
Both generally describe how strongly the gyro responds to chassis movement.
However, some gyros separate different response characteristics.
Depending on the gyro, you may be able to adjust settings such as:
- Gain
- Sensitivity
- Response speed
- Damping
- Steering endpoints
- Operating mode
These controls allow the steering response to be matched to different chassis setups, surfaces and driving styles.
What Is Gyro Damping?
Damping helps control how aggressively the steering reacts and settles after a correction.
A more aggressive response may feel fast, but it can also make the steering nervous.
More damping can make the steering feel smoother and reduce oscillation.
The ideal setting depends on several factors:
- Servo speed
- Chassis geometry
- Tire grip
- Track surface
- Driving speed
- Personal preference
There is no single gyro setting that works perfectly for every RC drift car.
How Should a Drift Gyro Be Installed?
A gyro should usually be mounted securely to the chassis.
The sensor needs to accurately detect chassis movement, so the gyro should not move independently from the car.
When installing a gyro:
- Mount it firmly
- Keep it as level as possible
- Follow the manufacturer's orientation instructions
- Avoid excessive vibration
- Check that the correction direction is correct
The last point is extremely important.
If the gyro correction direction is reversed, the steering will amplify the slide instead of correcting it.
This can make the car almost impossible to control.
How Do You Check Gyro Direction?
You can test gyro direction without driving the car.
Place the chassis on a flat surface.
Turn the car by hand.
If you rotate the rear of the chassis to one side, the front wheels should automatically steer in the opposite direction.
For example:
If the rear moves to the right,
the front wheels should counter-steer to the right relative to the chassis direction to stabilize the slide.
The exact visual direction depends on how you are holding the car, so the easiest rule is:
The gyro should steer against the chassis rotation—not increase it.
If the steering correction pushes the car further into the rotation, the gyro direction needs to be reversed.
What Are Steering Endpoints?
Steering endpoints define how far the servo is allowed to turn the front wheels.
They are often called EPA, or End Point Adjustment.
Correct endpoint setup is especially important in RC drifting because many RWD chassis use large steering angles.
If the endpoint is too low:
- The car may not reach its full steering angle
If the endpoint is too high:
- The servo may push against the mechanical steering limit
- Steering components may bind
- The servo may become overloaded
The ideal endpoint allows the steering to reach the chassis limit without forcing the mechanism beyond it.
Why Can Gyro Gain Affect Steering Correction Range?
On some gyro systems, low gain can make it appear that the steering is not reaching its full mechanical angle during gyro-assisted movement.
This does not necessarily mean the steering endpoint is incorrect.
The gyro's correction output may simply be too small to command the servo all the way to the mechanical limit.
Increasing the gyro gain can increase the correction range.
That is why steering endpoint setup and gyro gain should be tested separately.
First confirm the chassis can reach its correct mechanical steering limits.
Then adjust gyro gain for driving behavior.
Do AWD RC Drift Cars Need a Gyro?
Usually, no.
AWD RC drift cars use a very different driving system.
Because all four wheels are powered, they can maintain a slide without relying on the same counter-steering behavior as a RWD drift chassis.
A gyro may still exist on some AWD or toy-grade RC cars, but it does not play the same role as it does in hobby-grade RWD drifting.
In modern RWD drift setups, the gyro is an integral part of the steering system.
If you want to understand the broader difference between the two platforms, see our guide:
RWD vs AWD RC Drift: What's the Difference?
Is a Gyro Necessary for 1/24 RC Drift?
For hobby-grade 1/24 RWD RC drifting, a gyro is generally considered essential.
At this scale, the chassis reacts extremely quickly.
The short wheelbase and low mass mean that small changes in:
- Throttle
- Steering
- Surface grip
- Weight transfer
can produce very fast rotation.
Gyro assistance makes those reactions much easier to manage.
This allows the driver to focus on controlling the overall drift rather than constantly trying to catch every small chassis movement manually.
Does Track Surface Affect Gyro Settings?
Yes.
Track grip has a major effect on gyro behavior.
On a low-grip surface, the chassis may rotate more freely.
This can require different gyro settings than a higher-grip surface.
Tire material also matters.
A change in:
- Tire compound
- Track material
- Surface cleanliness
- Temperature
can change how quickly the chassis rotates.
As a result, the best gyro setting is often slightly different from one track to another.
This is why experienced drivers may adjust gyro gain when changing surfaces.
What Gyro Settings Should Beginners Use?
There is no universal number that works for every car.
A good beginner approach is:
- Confirm the gyro direction
- Set the steering endpoints correctly
- Start with moderate gyro gain
- Drive the car
- Increase gain if the chassis spins too easily
- Reduce gain if the steering begins to oscillate
- Fine-tune based on track grip and driving style
Avoid chasing a specific number just because another driver uses it.
Different servos, chassis, tires and track surfaces can all require different settings.
Can You Adjust a Gyro From the Transmitter?
Depending on the gyro, yes.
Some gyros allow gain adjustment through a transmitter channel.
This is useful because it allows the driver to change gyro gain without touching the gyro itself.
For example, a third channel can be used to increase or decrease gain while testing the car.
Some modern gyros also support app-based adjustment.
This can make it easier to change multiple parameters without physically accessing the electronics inside a small chassis.
A Gyro for Small-Scale RWD Drifting
For small platforms such as 1/24 and 1/28 scale, space is limited.
This makes compact electronics especially important.
A small-scale drift gyro should ideally provide:
- Stable correction
- Fast response
- Adjustable gain
- Reliable endpoint control
- Compact dimensions
- Easy setup
The ArkEdge AG4 Gen-2 was developed specifically for small-scale RWD drifting.
It supports 1/24–1/28 platforms and includes multiple operating modes, Bluetooth connectivity and app-based adjustment.
Gain and sensitivity can be adjusted digitally, while transmitter CH3 control can also be used for quick gain changes during driving.
This allows the steering response to be tuned without constantly removing the body or accessing the gyro directly.
How Should You Tune a Drift Gyro?
The easiest way to tune a gyro is to change one thing at a time.
Start with a mechanically correct chassis.
Make sure:
- Steering moves freely
- Servo endpoints are correct
- Gyro direction is correct
- Tires are appropriate for the surface
Then adjust gyro gain.
Drive several laps.
Observe how the chassis behaves.
If the rear rotates faster than the steering can recover, add some gain.
If the steering oscillates or feels nervous, reduce the gain.
Once the basic gain is correct, you can begin adjusting other settings such as sensitivity or damping.
The goal is not to make the gyro as strong as possible.
The goal is to make the car feel predictable.
The Simple Answer
A drift gyro is a steering-assistance device that detects chassis rotation and helps generate the counter-steering needed to stabilize a RWD RC drift car.
It does not drift the car for you.
Instead, it works together with the servo and your steering input to make the chassis easier to control.
For modern hobby-grade RWD RC drifting—especially at 1/24 and 1/28 scale—the gyro is one of the most important components in the entire setup.
A good gyro setup should feel almost invisible.
You should not be constantly fighting it.
The car should simply feel stable, predictable and responsive.
Continue Learning About 1/24 RC Drift
RWD vs AWD RC Drift: What's the Difference?
Understand why RWD and AWD RC drift cars behave so differently.
1/24 RC Drift Beginner Guide
Learn every component required for a complete small-scale RWD drift setup.
Toy-Grade vs Hobby-Grade RC Drift Cars
Learn why two RC drift cars that look similar can provide completely different driving experiences.
COMING SOON
About ArkEdge RC
ArkEdge RC develops products and systems for small-scale RWD RC drifting.
From chassis and steering electronics to wheels, tires and modular track surfaces, our goal is to make professional small-scale drifting easier to understand, build and enjoy.
Our Ark, Your Edge.
